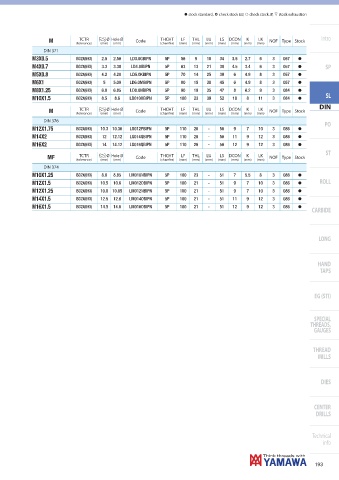

h stock standard, ) check stock EU, f check stock JP, m stock exhaustion

TCTR Ø Hole Ø Code THCHT LF THL LU LS DCON K LK NOF Type Stock Intro
M (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 371
ISO2X(6HX) 2.5 2.56 LD3.0GBIPN 5P 56 9 18 34 3.5 2.7 6 3 057 h
M3X0.5
ISO2X(6HX) 3.3 3.38 LD4.0IBIPN 5P 63 13 21 38 4.5 3.4 6 3 057 h SP
M4X0.7
ISO2X(6HX) 4.2 4.28 LD5.0KBIPN 5P 70 14 25 39 6 4.9 8 3 057 h
M5X0.8
ISO2X(6HX) 5 5.09 LD6.0MBIPN 5P 80 15 30 45 6 4.9 8 3 057 h
M6X1
ISO2X(6HX) 6.8 6.85 LD8.0NBIPN 5P 90 19 35 47 8 6.2 9 3 084 h
M8X1.25
SL
ISO2X(6HX) 8.5 8.6 LD010OBIPN 5P 100 23 39 52 10 8 11 3 084 h
M10X1.5
DIN
TCTR Ø Hole Ø Code THCHT LF THL LU LS DCON K LK NOF Type Stock
M (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 376
PO
ISO2X(6HX) 10.3 10.36 LG012PBIPN 5P 110 26 - 56 9 7 10 3 086 h
M12X1.75
ISO2X(6HX) 12 12.12 LG014QBIPN 5P 110 26 - 56 11 9 12 3 086 h
M14X2
ISO2X(6HX) 14 14.12 LG016QBIPN 5P 110 26 - 56 12 9 12 3 086 h
M16X2
ST
TCTR Ø Hole Ø THCHT LF THL LU LS DCON K LK
(tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
MF Code NOF Type Stock
DIN 374
ISO2X(6HX) 8.8 8.85 LM010NBIPN 5P 100 23 - 51 7 5.5 8 3 086 h
M10X1.25
ISO2X(6HX) 10.5 10.6 LM012OBIPN 5P 100 21 - 51 9 7 10 3 086 h ROLL
M12X1.5
ISO2X(6HX) 10.8 10.85 LM012NBIPN 5P 100 21 - 51 9 7 10 3 086 h
M12X1.25
ISO2X(6HX) 12.5 12.6 LM014OBIPN 5P 100 21 - 51 11 9 12 3 086 h
M14X1.5
ISO2X(6HX) 14.5 14.6 LM016OBIPN 5P 100 21 - 51 12 9 12 3 086 h
