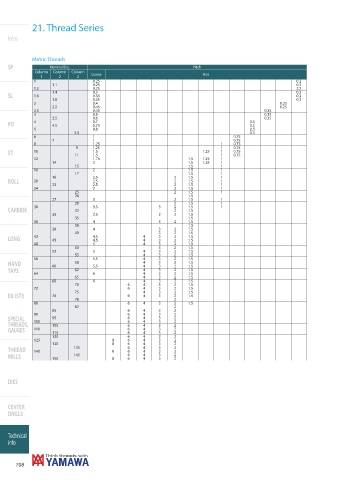

21. Thread Series

Intro

Metric Threads
SP Nominal Dia. Pitch
Column Column Column
Coarse Fine
1 2 2
1 0.25 0.2
1.1 0.25 0.2
1.2 0.25 2.2
1.4 0.3 0.2
SL 1.6 0.35 0.2
1.8 0.35 0.2
2 0.4 0.25
2.2 0.45 0.25
2.5 0.45 0.35
3 0.5 0.35
3.5 0.6 0.35
PO 4 4.5 0.7 0.5
0.75
0.5
5 0.8 0.5
5.5 0.5
6 1 0.75
7 1 0.75
8 1.25 1 0.75
9 1.25 1 0.75
ST 10 11 1.5 1.25 1 1 0.75
1.5
0.75
12 1.75 1.5 1.25 1
14 2 1.5 1.25 1
15 1.5 1
16 2 1.5 1
17 1.5 1
18 2.5 2 1.5 1
ROLL 20 2.5 2 1.5 1
22 2.5 2 1.5 1
24 3 2 1.5 1
25 2 1.5 1
26 1.5
27 3 2 1.5 1
28 2 1.5 1
30 3.5 3 2 1.5 1
CARBIDE 32 2 1.5
33 3.5 3 2 1.5
35 1.5
36 4 3 2 1.5
38 1.5
39 4 3 2 1.5
40 3 2 1.5
LONG 42 45 4.5 4 4 3 3 2 2 1.5
1.5
4.5
48 5 4 3 2 1.5
50 3 2 1.5
52 5 4 3 2 1.5
55 4 3 2 1.5
56 5.5 4 3 2 1.5
HAND 60 58 5,5 4 4 3 3 2 2 1.5
1.5
TAPS 62 4 3 2 1.5
64 6 4 3 2 1.5
65 4 3 2 1.5
68 6 4 3 2 1.5
70 6 4 3 2 1.5
72 6 4 3 2 1.5
75 4 3 2 1.5
EG (STI) 76 6 4 3 2 1.5
78 2
80 6 4 3 2 1.5
82 2
85 6 4 3 2
90 6 4 3 2
SPECIAL 100 95 6 6 4 4 3 3 2 2
THREADS, 105 6 4 3 2
GAUGES 110 6 4 3 2
115 6 4 3 2
120 6 4 3 2
125 8 6 4 3 2
130 8 6 4 3 2
THREAD 140 135 8 6 6 4 4 3 3 2 2
MILLS 150 145 8 6 6 4 4 3 3 2 2
DIES
CENTER
DRILLS
