Page 31 - Yamawa_European_Catalogue_YEU21

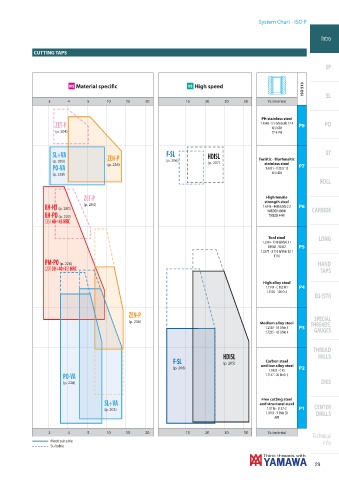

System Chart - ISO P

Intro

CUTTING TAPS

SP

ISO 513
MS Material specifi c HS High speed

3 4 5 10 15 20 15 20 30 50 Vc (m/min) SL

PH stainless steel
ZET-P 1.4548 - X 5 CrNiCuNb 17 4 P8 PO
AISI 630
(p. 204 ) 17-4-PH

SL+VA F-SL HDISL ST
(p. 203 ) ZEN-P (p. 206 ) (p. 207 ) Ferritic - Martensitic
(p. 236 ) stainless steel
PO-VA 1.4021 - X 20 Cr 13 P7
AISI 420
(p. 228 )
ROLL

ZET-P High tensile
strength steel
(p. 204 ) 1.6546 - 40 NiCrMo 2 2
EH-HT (p. 280 ) P6
HARDOX 400 ® CARBIDE
EH-PO (p. 230 ) TOOLOX 44 ®
(35) 40÷45 HRC

Tool steel LONG
1.2344 - X 40 CrMoV 5 1
ORVAR - W302 P5
1.2379 - X 155 CrVMo 12 1
K110
PM-PO (p. 228 ) HAND
(20) 30÷40 (45) HRC TAPS

High alloy steel
1.1545 - C 105 W1 P4
1.3505 - 100 Cr 6
EG (STI)

ZEN-P
(p. 236 ) SPECIAL
Medium alloy steel THREADS,
1.2330 - 35 CrMo 4 P3
1.7225 - 42 CrMo 4 GAUGES

THREAD
HDISL MILLS
F-SL (p. 205 ) Carbon steel
and low alloy steel
(p. 206 ) P2
1.0503 - C 45
PO-VA 1.7147 - 20 MnCr 5
(p. 228 ) DIES

Free cutting steel
SL+VA and structural steel
(p. 203 ) 1.0116 - St 37-3 P1 CENTER
1.0715 - 9 SMn 28 DRILLS
AVP
3 4 5 10 15 20 15 20 30 50 Vc (m/min)
Technical
Most suitable info
Suitable

29
29
