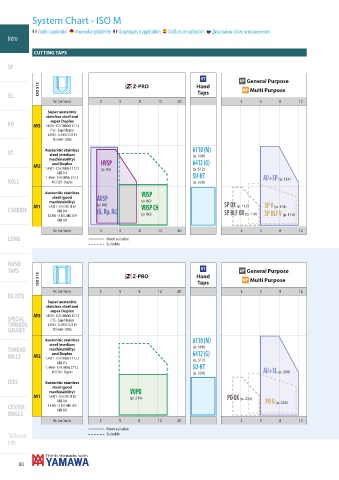

System Chart - ISO M
Grafici applicativi Anwendungstabellen Graphiques d’application Gráficos de aplicación Диаграммы области применения
Intro

CUTTING TAPS

SP

HT GP General Purpose
ISO 513 Z-PRO Hand MP Multi Purpose
SL Taps
Vc (m/min) 3 5 8 12 20 3 5 8 12
Super austenitic
stainless steel and
super Duplex
PO M3 1.4410 - X 2 CrNiMoN 25 7 4
F 53 - Super duplex
1.4943 - X 4 NiCrTi 25 15
AISI 660 - A286

Austenitic stainless 6110 (M)
ST steel (medium (p. 508 )
machinability)
and Duplex HVSP 6412 (G)
M2
1.4401 - X 5 CrNiMo 17 12 2 (p. 92 ) (p. 512 )
AISI 316
1.4460 - X 4 CrNiMo 27 5 2 SU-HT AU+SP (p. 124 )
ROLL AISI 329 - Duplex (p. 330 )
Austenitic stainless VUSP
steel (good AUSP
machinability) (p. 80 )
M1 1.4301 - X 5 CrNi 18 10 (p. 88 ) VUSP CH SP OX (p. 112 ) SP V (p. 118 )
CARBIDE AISI 304 (G, Rp, Rc)
1.4305 - X 10 CrNiS 18 9 (p. 80 ) SP BLF OX (p. 110 ) SP BLF V (p. 116 )
AISI 303
Vc (m/min) 3 5 8 12 20 3 5 8 12
LONG Most suitable
Suitable

HAND
TAPS HT GP General Purpose
ISO 513 Z-PRO Hand MP Multi Purpose
Taps
Vc (m/min) 3 5 8 12 20 3 5 8 12
EG (STI)
Super austenitic
stainless steel and
super Duplex
M3 1.4410 - X 2 CrNiMoN 25 7 4
SPECIAL F 53 - Super duplex
THREADS, 1.4943 - X 4 NiCrTi 25 15
GAUGES AISI 660 - A286
Austenitic stainless 6110 (M)
steel (medium (p. 508 )
THREAD machinability)
and Duplex 6412 (G)
MILLS M2 1.4401 - X 5 CrNiMo 17 12 2
AISI 316 (p. 512 )
1.4460 - X 4 CrNiMo 27 5 2 SU-HT
AISI 329 - Duplex (p. 330 ) AU+SL (p. 200 )
DIES Austenitic stainless
steel (good
machinability) VUPO
M1 1.4301 - X 5 CrNi 18 10 (p. 214 ) PO OX (p. 224 )
AISI 304 PO V (p. 226 )
CENTER 1.4305 - X 10 CrNiS 18 9
AISI 303
DRILLS
Vc (m/min) 3 5 8 12 20 3 5 8 12
Most suitable
Technical Suitable
info
