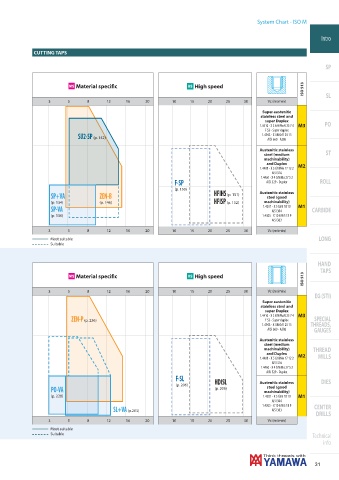

System Chart - ISO M

Intro

CUTTING TAPS

SP

ISO 513
MS Material specifi c HS High speed

3 5 8 12 16 20 10 15 20 25 30 Vc (m/min) SL
Super austenitic
stainless steel and
super Duplex
1.4410 - X 2 CrNiMoN 25 7 4 M3 PO
F 53 - Super duplex
1.4943 - X 4 NiCrTi 25 15
SU2-SP (p. 142 )
AISI 660 - A286
Austenitic stainless
steel (medium ST
machinability)
and Duplex
1.4401 - X 5 CrNiMo 17 12 2 M2
AISI 316
1.4460 - X 4 CrNiMo 27 5 2
F-SP AISI 329 - Duplex ROLL
(p. 150 )
Austenitic stainless
SP+VA ZEN-B HFIHS (p. 151 ) steel (good
(p. 134 ) (p. 146 ) HFISP (p. 152 ) machinability)
SP-VA 1.4301 - X 5 CrNi 18 10 M1 CARBIDE
AISI 304
(p. 136 ) 1.4305 - X 10 CrNiS 18 9
AISI 303
3 5 8 12 16 20 10 15 20 25 30 Vc (m/min)
Most suitable LONG
Suitable

HAND
TAPS
ISO 513
MS Material specifi c HS High speed

3 5 8 12 16 20 10 15 20 25 30 Vc (m/min)
EG (STI)
Super austenitic
stainless steel and
super Duplex
1.4410 - X 2 CrNiMoN 25 7 4 M3
ZEN-P (p. 236 ) F 53 - Super duplex SPECIAL
1.4943 - X 4 NiCrTi 25 15 THREADS,
AISI 660 - A286 GAUGES
Austenitic stainless
steel (medium
machinability) THREAD
and Duplex
1.4401 - X 5 CrNiMo 17 12 2 M2 MILLS
AISI 316
1.4460 - X 4 CrNiMo 27 5 2
AISI 329 - Duplex
F-SL DIES
(p. 206 ) HDISL Austenitic stainless
steel (good
PO-VA (p. 205 ) machinability)
(p. 228 ) 1.4301 - X 5 CrNi 18 10 M1
AISI 304
1.4305 - X 10 CrNiS 18 9 CENTER
SL+VA (p. 203 ) AISI 303
DRILLS
3 5 8 12 16 20 10 15 20 25 30 Vc (m/min)
Most suitable
Suitable
Technical
info

31
31
