Catalogue Structure
Intro

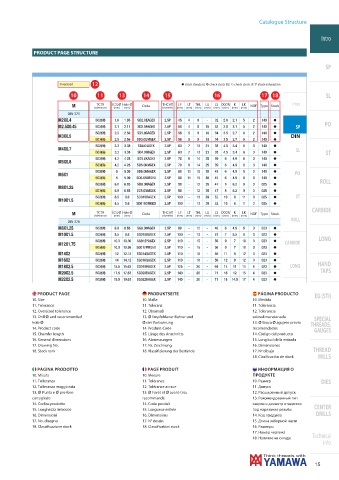

PRODUCT PAGE STRUCTURE
SP
Oversized 12 h stock standard, ) check stock EU, f check stock JP, m stock exhaustion
10 11 13 14 15 16 17 18 SL
M TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock Intro
(tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 371
M2X0.4 ISO2(6H) 1.6 1.65 SD2.0EAGEX 2.5P 45 4 8 - 32 2.8 2.1 5 2 140 h
M2.5X0.45 ISO2(6H) 2.1 2.11 SD2.5FAGEX 2.5P 50 4 8 15 33 2.8 2.1 5 2 140 h SP PO
ISO2(6H) 2.5 2.56 SD3.0GAGEX 2.5P 56 5 9 18 34 3.5 2.7 6 2 140 h
M3X0.5 DIN
ISO3(6G) 2.5 2.56 SD3.0GMGEX 2.5P 56 5 9 18 34 3.5 2.7 6 2 140 h
ISO2(6H) 3.3 3.38 SD4.0IAGEX 2.5P 63 7 13 21 38 4.5 3.4 6 3 140 h
M4X0.7 SL
ISO3(6G) 3.3 3.38 SD4.0IMGEX 2.5P 63 7 13 21 38 4.5 3.4 6 3 140 h ST
ISO2(6H) 4.2 4.28 SD5.0KAGEX 2.5P 70 9 14 25 39 6 4.9 8 3 140 h
M5X0.8
ISO3(6G) 4.2 4.28 SD5.0KMGEX 2.5P 70 9 14 25 39 6 4.9 8 3 140 h
ISO2(6H) 5 5.09 SD6.0MAGEX 2.5P 80 11 15 30 45 6 4.9 8 3 140 h
M6X1 PO
ISO3(6G) 5 5.09 SD6.0MMGEX 2.5P 80 11 15 30 45 6 4.9 8 3 140 h
ROLL
ISO2(6H) 6.8 6.85 SD8.0NAGEX 2.5P 90 - 12 35 47 8 6.2 9 3 025 h
M8X1.25
ISO3(6G) 6.8 6.85 SD8.0NMGEX 2.5P 90 - 12 35 47 8 6.2 9 3 025 h
ISO2(6H) 8.5 8.6 SD010OAGEX 2.5P 100 - 13 39 52 10 8 11 3 025 h ST
M10X1.5
ISO3(6G) 8.5 8.6 SD010OMGEX 2.5P 100 - 13 39 52 10 8 11 3 025 h
CARBIDE
LF
LS DCON
TCTR
LT
LU
K
LK
M (tolerance) (mm) Ø Hole Ø Code THCHT (mm) (mm) THL (mm) (mm) (mm) (mm) (mm) NOF Type Stock
(mm)
(mm)
(chamfer)
ROLL
DIN 376
M8X1.25 ISO2(6H) 6.8 6.85 SG8.0NAGEX 2.5P 90 - 12 - 46 6 4.9 8 3 023 h
M10X1.5 ISO2(6H) 8.5 8.6 SG010OAGEX 2.5P 100 - 13 - 51 7 5.5 8 3 023 h
LONG
ISO2(6H) 10.3 10.36 SG012PAGEX 2.5P 110 - 15 - 56 9 7 10 3 023 h
M12X1.75 CARBIDE
ISO3(6G) 10.3 10.36 SG012PMGEX 2.5P 110 - 15 - 56 9 7 10 3 023 h
M14X2 ISO2(6H) 12 12.12 SG014QAGEX 2.5P 110 - 18 - 56 11 9 12 3 023 h
M16X2 ISO2(6H) 14 14.12 SG016QAGEX 2.5P 110 - 18 - 56 12 9 12 3 023 h
M18X2.5 ISO2(6H) 15.5 15.63 SG018RAGEX 2.5P 125 - 20 - 64 14 11 14 4 023 h LONG HAND
M20X2.5 ISO2(6H) 17.5 17.63 SG020RAGEX 2.5P 140 - 20 - 71 16 12 15 4 023 h TAPS
M22X2.5 ISO2(6H) 19.5 19.63 SG022RAGEX 2.5P 140 - 20 - 71 18 14.5 17 4 023 h
PRODUCT PAGE PRODUKTSEITE PÁGINA PRODUCTO EG (STI)
10. Size 10. Maße 10. Medida
11. Tolerance 11. Toleranz 11. Tolerancia
12. Oversized tolerance 12. Übermaß 12. Tolerancia
13. Drill ø and recommended 13. ø Empfohlener Bohrer und sobredimensionada SPECIAL
hole ø ø der Vorbohrung 13. ø Broca ø agujero previo THREADS,
14. Product code 14. Produkt-Code recomendados GAUGES
15. Chamfer length 15. Länge des Anschnitts 14. Código del producto
16. General dimensions 16. Abmessungen 15. Longitud de la entrada
17. Drawing No. 17. Nr. Zeichnung 16. Dimensiones
18. Stock rank 18. Klassifi zierung der Bestände 17. Nº dibujo THREAD
18. Clasifi cación de stock MILLS
PAGINA PRODOTTO PAGE PRODUIT ИНФОРМАЦИЯ О
10. Misura 10. Mesure ПРОДУКТЕ
11. Tolleranza 11. Tolérance 10. Размер DIES
12. Tolleranza maggiorata 12. Tolérance accrue 11. Допуск
13. ø Punta e ø pre-foro 13. ø Foret et ø avant-trou 12. Расширенный допуск
consigliato recommandé 13. Рекомендованный тип
14. Codice prodotto 14. Code produit сверла и диаметр отверстия
15. Lunghezza imbocco 15. Longueur entrée под нарезание резьбы CENTER
16. Dimensioni 16. Dimensions 14. Код продукта DRILLS
17. No. disegno 17. N° dessin 15. Длина заборной части
18. Classifi cazione stock 18. Classifi cation stock 16. Размеры
17. Номер чертежа
18. Наличие на складе Technical
