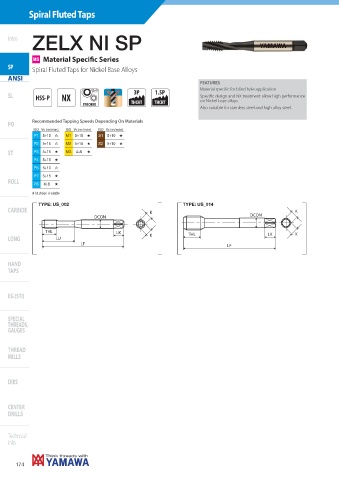

P. 176
Spiral Fluted Taps
ZELX NI SP
Intro
MS Material Specific Series
SP
Spiral Fluted Taps for Nickel Base Alloys
ANSI
FEATURES
Material specific for blind hole application.
3P 1.5P
SL HSS-P NX Specific design and NX treatment allow high performance
SYNCHRO THCHT THCHT on Nickel base alloys.
Also suitable for stainless steel and high alloy steel.
Recommended Tapping Speeds Depending On Materials
PO
ISO Vc (m/min) ISO Vc (m/min) ISO Vc (m/min)
P1 5÷15 , M1 5÷15 + S1 5÷10 +
P2 5÷15 , M2 5÷15 + S2 5÷10 +
ST P3 5÷15 + M3 4÷8 +
P4 5÷15 +
P5 5÷10 ,
P7 5÷15 +
ROLL
P8 4÷8 +
ANSI-ZELX NI SP
+ 1st choice , suitable
TYPE: US_002 TYPE: US_014
CARBIDE K K
DCON DCON
THL LK THL LK K
LONG LU K
LF LF
