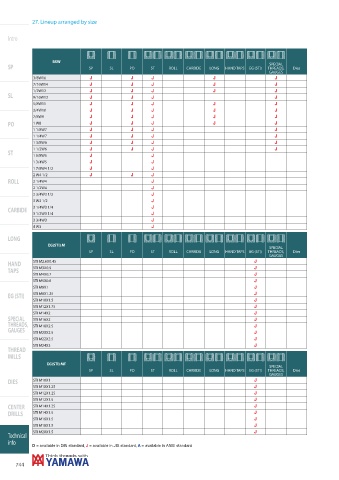

27. Lineup arranged by size

Intro

BSW SPECIAL
SP SP SL PO ST ROLL CARBIDE LONG HAND TAPS EG (STI) THREADS, Dies
GAUGES
3/8W16 J J J J J
7/16W14 J J J J J
1/2W12 J J J J J
SL 9/16W12 J J J J
5/8W11 J J J J J
3/4W10 J J J J J
7/8W9 J J J J J
PO 1 W8 J J J J J
1 1/8W7 J J J J
1 1/4W7 J J J J
1 3/8W6 J J J J
1 1/2W6 J J J J
ST
1 5/8W5 J J
1 3/4W5 J J
1 7/8W4 1/2 J J
2 W4 1/2 J J J
ROLL 2 1/4W4 J
2 1/2W4 J
2 3/4W3 1/2 J
3 W3 1/2 J
3 1/4W3 1/4 J
CARBIDE
3 1/2W3 1/4 J
3 3/4W3 J
4 W3 J

LONG
EG(STI) M
SPECIAL
SP SL PO ST ROLL CARBIDE LONG HAND TAPS EG (STI) THREADS, Dies
GAUGES
HAND STI M2.6X0.45 J
TAPS STI M3X0.5 J
STI M4X0.7 J
STI M5X0.8 J
STI M6X1 J
STI M8X1.25 J
EG (STI)
STI M10X1.5 J
STI M12X1.75 J
STI M14X2 J
SPECIAL STI M16X2 J
THREADS, STI M18X2.5 J
GAUGES STI M20X2.5 J
STI M22X2.5 J
STI M24X3 J
THREAD
MILLS
EG(STI) MF
SPECIAL
SP SL PO ST ROLL CARBIDE LONG HAND TAPS EG (STI) THREADS, Dies
GAUGES
DIES STI M10X1 J
STI M10X1.25 J
STI M12X1.25 J
STI M12X1.5 J
CENTER STI M14X1.25 J
DRILLS STI M14X1.5 J
STI M16X1.5 J
STI M18X1.5 J
STI M20X1.5 J
Technical
info
D = available in DIN standard, J = available in JIS standard, A = available in ANSI standard
