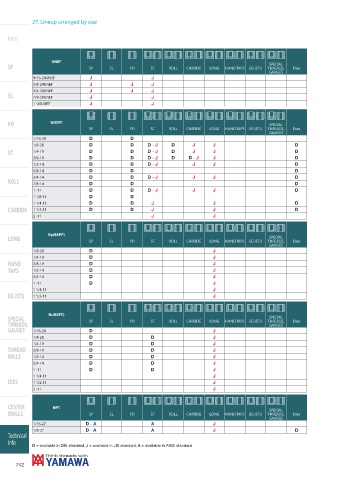

27. Lineup arranged by size

Intro

UNEF SPECIAL
SP SP SL PO ST ROLL CARBIDE LONG HAND TAPS EG (STI) THREADS, Dies
GAUGES
9/16-24UNEF J J
5/8-24UNEF J J J
3/4-20UNEF J J J
SL 7/8-20UNEF J J
1 -20UNEF J J

PO G(BSP) SPECIAL
SP SL PO ST ROLL CARBIDE LONG HAND TAPS EG (STI) THREADS, Dies
GAUGES
1/16-28 D D
1/8-28 D D D - J D J J D
ST 1/4-19 D D D - J D J J D
3/8-19 D D D - J D D - J J D
1/2-14 D D D - J J J D
5/8-14 D D D
3/4-14 D D D - J J J D
ROLL
7/8-14 D D D
1 -11 D D D - J J J D
1 1/8-11 D D
1 1/4-11 D D J J D
CARBIDE 1 1/2-11 D D J J D
2 -11 J J

Rp(BSPP)
SPECIAL
LONG SP SL PO ST ROLL CARBIDE LONG HAND TAPS EG (STI) THREADS, Dies
GAUGES
1/8-28 D J
1/4-19 D J
HAND 3/8-19 D J
TAPS 1/2-14 D J
3/4-14 D J
1 -11 D J
1 1/4-11 J
EG (STI) 1 1/2-11 J

Rc(BSPT)
SPECIAL
SPECIAL SP SL PO ST ROLL CARBIDE LONG HAND TAPS EG (STI) THREADS, Dies
THREADS, GAUGES
GAUGES 1/16-28 D J
1/8-28 D D J
1/4-19 D D J
THREAD 3/8-19 D D J
MILLS 1/2-14 D D J
3/4-14 D D J
1 -11 D D J
1 1/4-11 J
DIES 1 1/2-11 J
2 -11 J

CENTER NPT SPECIAL
DRILLS SP SL PO ST ROLL CARBIDE LONG HAND TAPS EG (STI) THREADS, Dies
GAUGES
1/16-27 D - A A J
1/8-27 D - A A J D
Technical
info
D = available in DIN standard, J = available in JIS standard, A = available in ANSI standard
