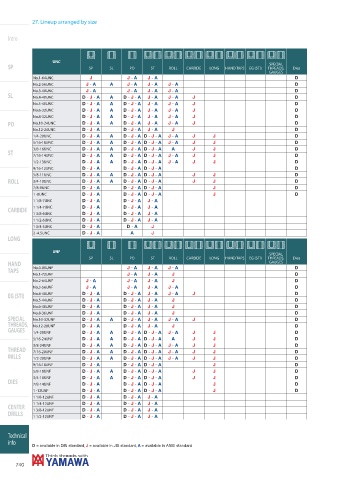

27. Lineup arranged by size

Intro

UNC SPECIAL
SP SP SL PO ST ROLL CARBIDE LONG HAND TAPS EG (STI) THREADS, Dies
GAUGES
No.1-64UNC J J - A J - A D
No.2-56UNC J - A A J - A J - A J - A D
No.3-48UNC J - A J - A J - A J - A D
SL No.4-40UNC D - J - A A D - J - A J - A J - A J D
No.5-40UNC D - J - A A D - J - A J - A J - A J D
No.6-32UNC D - J - A A D - J - A J - A J - A J D
No.8-32UNC D - J - A A D - J - A J - A J - A J D
PO No.10-24UNC D - J - A A D - J - A J - A J - A J D
No.12-24UNC D - J - A D - J - A J - A J D
1/4-20UNC D - J - A A D - J - A D - J - A J - A J J D

5/16-18UNC D - J - A A D - J - A D - J - A J - A J J D

3/8-16UNC D - J - A A D - J - A D - J - A A J J D

ST
7/16-14UNC D - J - A A D - J - A D - J - A J - A J J D

1/2-13UNC D - J - A A D - J - A D - J - A J - A J J D

9/16-12UNC D - J - A D - J - A D - J - A D

5/8-11UNC D - J - A A D - J - A D - J - A J J D

ROLL 3/4-10UNC D - J - A A D - J - A D - J - A J J D

7/8-9UNC D - J - A D - J - A D - J - A J D

1 -8UNC D - J - A D - J - A D - J - A J D

1 1/8-7UNC D - J - A D - J - A J - A
1 1/4-7UNC D - J - A D - J - A J - A
CARBIDE
1 3/8-6UNC D - J - A D - J - A J - A
1 1/2-6UNC D - J - A D - J - A J - A
1 3/4-5UNC D - J - A D - A J
2 -4.5UNC D - J - A A J
LONG
UNF
SPECIAL
SP SL PO ST ROLL CARBIDE LONG HAND TAPS EG (STI) THREADS, Dies
HAND GAUGES
TAPS No.0-80UNF J - A J - A J - A D
No.1-72UNF J - A J - A J D
No.2-64UNF J - A J - A J - A J D
No.3-56UNF J - A J - A J - A J - A D
No.4-48UNF D - J - A D - J - A J - A J - A J D
EG (STI)
No.5-44UNF D - J - A D - J - A J - A J D
No.6-40UNF D - J - A D - J - A J - A J D
No.8-36UNF D - J - A D - J - A J - A J D
SPECIAL No.10-32UNF D - J - A A D - J - A J - A J - A J D
THREADS, No.12-28UNF D - J - A D - J - A J - A J D
GAUGES 1/4-28UNF D - J - A A D - J - A D - J - A J - A J J D

5/16-24UNF D - J - A A D - J - A D - J - A A J J D

3/8-24UNF D - J - A A D - J - A D - J - A J - A J J D

THREAD 7/16-20UNF D - J - A A D - J - A D - J - A J - A J J D

MILLS 1/2-20UNF D - J - A A D - J - A D - J - A J - A J J D

9/16-18UNF D - J - A D - J - A D - J - A J D

5/8-18UNF D - J - A A D - J - A D - J - A J J D

3/4-16UNF D - J - A A D - J - A D - J - A J J D

DIES 7/8-14UNF D - J - A D - J - A D - J - A J D

1 -12UNF D - J - A D - J - A D - J - A J D

1 1/8-12UNF D - J - A D - J - A J - A
1 1/4-12UNF D - J - A D - J - A J - A
CENTER 1 3/8-12UNF D - J - A D - J - A J - A
DRILLS
1 1/2-12UNF D - J - A D - J - A J - A
Technical
info
D = available in DIN standard, J = available in JIS standard, A = available in ANSI standard
