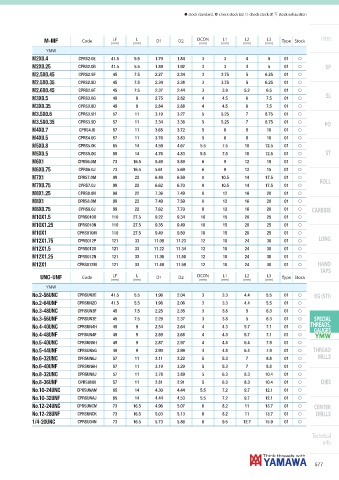

h stock standard, ) check stock EU, f check stock JP, m stock exhaustion

LF L DCON L1 L2 L3 Intro
Code D1 D2 Type Stock
M-MF (mm) (mm) (mm) (mm) (mm) (mm)
YMW
CPRS2.0E 41.5 5.5 1.79 1.84 3 3 4 5 01 f
M2X0.4
CPRS2.0B 41.5 5.5 1.89 1.92 3 3 4 5 01 f SP
M2X0.25
CPRS2.5F 45 7.5 2.27 2.34 3 3.75 5 6.25 01 f
M2.5X0.45
CPRS2.5D 45 7.5 2.34 2.38 3 3.75 5 6.25 01 f
M2.5X0.35
CPRS2.6F 45 7.5 2.37 2.44 3 3.9 5.2 6.5 01 f
M2.6X0.45
SL
CPRS3.0G 49 9 2.75 2.82 4 4.5 6 7.5 01 f
M3X0.5
CPRS3.0D 49 9 2.84 2.88 4 4.5 6 7.5 01 f
M3X0.35
CPRS3.5H 57 11 3.19 3.27 5 5.25 7 8.75 01 f
M3.5X0.6
CPRS3.5D 57 11 3.34 3.38 5 5.25 7 8.75 01 f
M3.5X0.35 PO
CPRS4.0I 57 11 3.65 3.72 5 6 8 10 01 f
M4X0.7
CPRS4.0G 57 11 3.76 3.83 5 6 8 10 01 f
M4X0.5
CPRS5.0K 65 14 4.59 4.67 5.5 7.5 10 12.5 01 f
M5X0.8
CPRS5.0G 65 14 4.76 4.83 5.5 7.5 10 12.5 01 f ST
M5X0.5
CPRS6.0M 73 16.5 5.49 5.59 6 9 12 15 01 f
M6X1
CPRS6.0J 73 16.5 5.61 5.69 6 9 12 15 01 f
M6X0.75
CPRS7.0M 99 22 6.49 6.59 8 10.5 14 17.5 01 f
ROLL
M7X1
CPRS7.0J 99 22 6.62 6.70 8 10.5 14 17.5 01 f
M7X0.75
CPRS8.0N 99 22 7.36 7.49 8 12 16 20 01 f
M8X1.25
CPRS8.0M 99 22 7.49 7.59 8 12 16 20 01 f
M8X1
CPRS8.0J 99 22 7.62 7.70 8 12 16 20 01 f
M8X0.75 CARBIDE
CPRS010O 110 27.5 9.22 9.34 10 15 20 25 01 f
M10X1.5
CPRS010N 110 27.5 9.35 9.49 10 15 20 25 01 f
M10X1.25
CPRS010M 110 27.5 9.49 9.59 10 15 20 25 01 f
M10X1
LONG
CPRS012P 121 33 11.09 11.23 12 18 24 30 01 f
M12X1.75
CPRS012O 121 33 11.22 11.34 12 18 24 30 01 f
M12X1.5
CPRS012N 121 33 11.36 11.50 12 18 24 30 01 f
M12X1.25
CPRS012M 121 33 11.49 11.59 12 18 24 30 01 f HAND
M12X1
TAPS
Code LF L D1 D2 DCON L1 L2 L3 Type Stock
UNC-UNF (mm) (mm) (mm) (mm) (mm) (mm)
YMW
CPRSUN2E 41.5 5.5 1.96 2.04 3 3.3 4.4 5.5 01 f
No.2-56UNC EG (STI)
CPRSUN2D 41.5 5.5 1.98 2.06 3 3.3 4.4 5.5 01 f
No.2-64UNF
CPRSUN3F 45 7.5 2.25 2.35 3 3.8 5 6.3 01 f
No.3-48UNC
CPRSUN3E 45 7.5 2.29 2.37 3 3.8 5 6.3 01 f SPECIAL
No.3-56UNF
CPRSUN4H 49 9 2.54 2.64 4 4.3 5.7 7.1 01 f THREADS,
GAUGES
No.4-40UNC
CPRSUN4F 49 9 2.59 2.68 4 4.3 5.7 7.1 01 f
No.4-48UNF YMW
CPRSUN5H 49 9 2.87 2.97 4 4.8 6.4 7.9 01 f
No.5-40UNC
CPRSUN5G 49 9 2.90 2.99 4 4.8 6.4 7.9 01 f THREAD
No.5-44UNF
CPRSUN6J 57 11 3.11 3.22 5 5.3 7 8.8 01 f MILLS
No.6-32UNC
CPRSUN6H 57 11 3.19 3.29 5 5.3 7 8.8 01 f
No.6-40UNF
CPRSUN8J 57 11 3.78 3.89 5 6.3 8.3 10.4 01 f
No.8-32UNC
CPRSUN8I 57 11 3.81 3.91 5 6.3 8.3 10.4 01 f DIES
No.8-36UNF
CPRSUNAM 65 14 4.30 4.44 5.5 7.2 9.7 12.1 01 f
No.10-24UNC
CPRSUNAJ 65 14 4.44 4.53 5.5 7.2 9.7 12.1 01 f
No.10-32UNF
CPRSUNCM 73 16.5 4.96 5.07 6 8.2 11 13.7 01 f CENTER
No.12-24UNC
CPRSUNCK 73 16.5 5.03 5.13 6 8.2 11 13.7 01 f DRILLS
No.12-28UNF
CPRSU04N 73 16.5 5.73 5.86 6 9.5 12.7 15.9 01 f
1/4-20UNC
Technical
info
577
