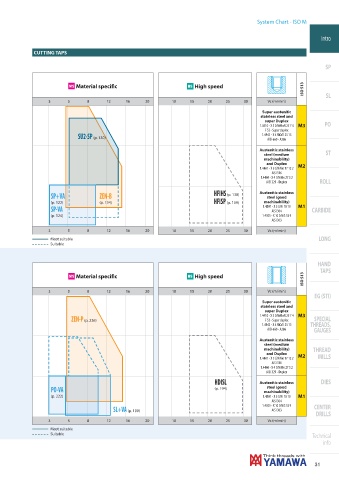

System Chart - ISO M

Intro

CUTTING TAPS

SP

ISO 513
MS Material specific HS High speed

3 5 8 12 16 20 10 15 20 25 30 Vc (m/min) SL
Super austenitic
stainless steel and
super Duplex
1.4410 - X 2 CrNiMoN 25 7 4 M3 PO
F 53 - Super duplex
1.4943 - X 4 NiCrTi 25 15
SU2-SP (p. 130) AISI 660 - A286
Austenitic stainless
steel (medium ST
machinability)
and Duplex
1.4401 - X 5 CrNiMo 17 12 2 M2
AISI 316
1.4460 - X 4 CrNiMo 27 5 2
AISI 329 - Duplex ROLL
Austenitic stainless
SP+VA ZEN-B HFIHS (p. 138) steel (good
(p. 122) (p. 134) HFISP (p. 139) machinability)
SP-VA 1.4301 - X 5 CrNi 18 10 M1 CARBIDE
AISI 304
(p. 124) 1.4305 - X 10 CrNiS 18 9
AISI 303
3 5 8 12 16 20 10 15 20 25 30 Vc (m/min)
Most suitable LONG
Suitable

HAND
TAPS
ISO 513
MS Material specific HS High speed

3 5 8 12 16 20 10 15 20 25 30 Vc (m/min)
EG (STI)
Super austenitic
stainless steel and
super Duplex
1.4410 - X 2 CrNiMoN 25 7 4 M3
ZEN-P (p. 226) F 53 - Super duplex SPECIAL
1.4943 - X 4 NiCrTi 25 15 THREADS,
AISI 660 - A286 GAUGES
Austenitic stainless
steel (medium
machinability) THREAD
and Duplex
1.4401 - X 5 CrNiMo 17 12 2 M2 MILLS
AISI 316
1.4460 - X 4 CrNiMo 27 5 2
AISI 329 - Duplex
HDISL Austenitic stainless DIES
steel (good
PO-VA (p. 194) machinability)
(p. 222) 1.4301 - X 5 CrNi 18 10 M1
AISI 304
1.4305 - X 10 CrNiS 18 9 CENTER
SL+VA (p. 190) AISI 303
DRILLS
3 5 8 12 16 20 10 15 20 25 30 Vc (m/min)
Most suitable
Suitable
