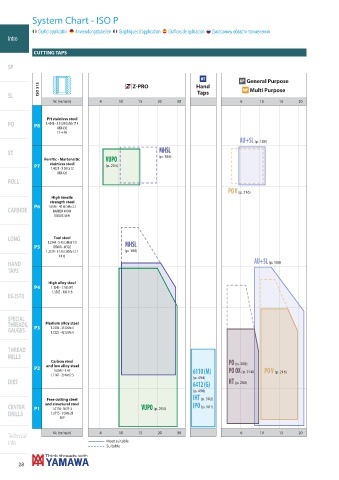

System Chart - ISO P
Grafici applicativi Anwendungstabellen Graphiques d’application Gráficos de aplicación Диаграммы области применения
Intro

CUTTING TAPS

SP

HT GP General Purpose
ISO 513 Z-PRO Hand MP Multi Purpose
SL Taps
Vc (m/min) 4 10 15 20 30 6 10 15 20

PH stainless steel
PO P8 1.4548 - X 5 CrNiCuNb 17 4
AISI 630
17-4-PH
AU+SL (p. 188)
MHSL
ST
Ferritic - Martensitic VUPO (p. 186)
stainless steel
P7 (p. 204)
1.4021 - X 20 Cr 13
AISI 420
ROLL
PO V (p. 216)
High tensile
strength steel
P6 1.6546 - 40 NiCrMo 2 2
CARBIDE HARDOX 400 ®
TOOLOX 44 ®

LONG Tool steel
1.2344 - X 40 CrMoV 5 1 MHSL
P5 ORVAR - W302
1.2379 - X 155 CrVMo 12 1 (p. 186)
K110
HAND AU+SL (p. 188)
TAPS

High alloy steel
P4 1.1545 - C 105 W1
1.3505 - 100 Cr 6
EG (STI)

SPECIAL
THREADS, Medium alloy steel
1.2330 - 35 CrMo 4
GAUGES P3 1.7225 - 42 CrMo 4

THREAD
MILLS
Carbon steel
and low alloy steel PO (p. 208)
P2
1.0503 - C 45 6110 (M) PO OX (p. 214) PO V (p. 216)
1.7147 - 20 MnCr 5
(p. 494)
DIES 6412 (G) HT (p. 266)
(p. 498)
Free cutting steel IHT (p. 502)
and structural steel
CENTER P1 1.0116 - St 37-3 VUPO (p. 204) IPO (p. 501)
DRILLS 1.0715 - 9 SMn 28
AVP

Vc (m/min) 4 10 15 20 30 6 10 15 20
Technical
info Most suitable
Suitable
