Page 44 - Yamawa_European_Catalogue_YEU21

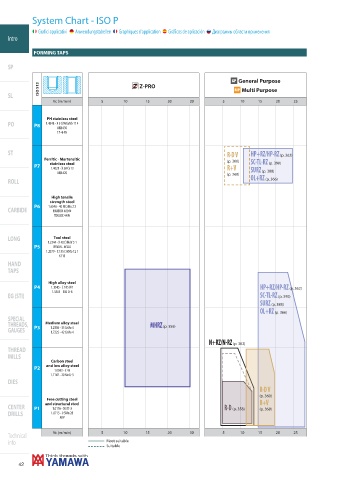

System Chart - ISO P
Grafici applicativi Anwendungstabellen Graphiques d’application Gráficos de aplicación Диаграммы области применения
Intro

FORMING TAPS

SP

GP General Purpose
ISO 513 Z-PRO MP Multi Purpose
SL
Vc (m/min) 5 10 15 20 30 5 10 15 20 25

PH stainless steel
PO P8 1.4548 - X 5 CrNiCuNb 17 4
AISI 630
17-4-PH

ST R-D V HP+RZ/HP-RZ (p. 362 )
Ferritic - Martensitic (p. 360 )
stainless steel SC-TL-RZ (p. 390 )
P7
1.4021 - X 20 Cr 13 R+V
AISI 420 SURZ (p. 388 )
(p. 368 )
OL+RZ (p. 366 )
ROLL
High tensile
strength steel
P6 1.6546 - 40 NiCrMo 2 2
CARBIDE HARDOX 400 ®
TOOLOX 44 ®

LONG Tool steel
1.2344 - X 40 CrMoV 5 1
P5 ORVAR - W302
1.2379 - X 155 CrVMo 12 1
K110
HAND
TAPS

High alloy steel
P4 1.1545 - C 105 W1 HP+RZ/HP-RZ (p. 362 )
1.3505 - 100 Cr 6
EG (STI) SC-TL-RZ (p. 390 )
SURZ (p. 388 )
OL+RZ (p. 366 )
SPECIAL
THREADS, Medium alloy steel MHRZ (p. 356 )
1.2330 - 35 CrMo 4
GAUGES P3 1.7225 - 42 CrMo 4
N+RZ/N-RZ (p. 362 )
THREAD
MILLS
Carbon steel
and low alloy steel
P2
1.0503 - C 45
1.7147 - 20 MnCr 5
DIES
R-D V
(p. 360 )
Free cutting steel
and structural steel R+V
CENTER P1 1.0116 - St 37-3 R-D (p. 358 ) (p. 368 )
DRILLS 1.0715 - 9 SMn 28
AVP

Vc (m/min) 5 10 15 20 30 5 10 15 20 25
Technical
info Most suitable
Suitable

42
42
