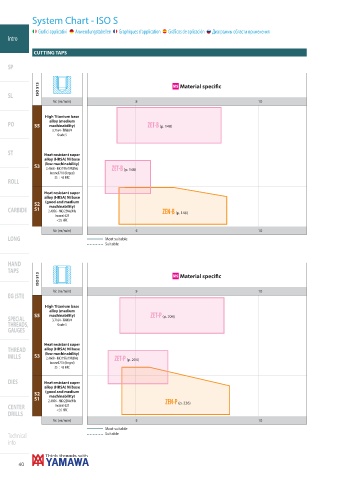

System Chart - ISO S
Grafici applicativi Anwendungstabellen Graphiques d’application Gráficos de aplicación Диаграммы области применения
Intro

CUTTING TAPS

SP

ISO 513 MS Material specifi c
SL
Vc (m/min) 5 10

High Titanium base
alloy (medium
PO S5 machinability) ZET-B (p. 148 )
3.7164 - TiAl6V4
Grade 5

ST Heat resistant super
alloy (HRSA) Ni base
(low machinability)
S3
2.4668 - NiCr19Fe19NbMo ZET-B (p. 148 )
Inconel 718 (forged)
35 ÷ 45 HRC
ROLL
Heat resistant super
alloy (HRSA) Ni base
(good and medium
S2 machinability)
CARBIDE S1 2.4856 - NiCr22Mo9Nb
Inconel 625 ZEN-B (p. 146 )
<35 HRC
Vc (m/min) 5 10
LONG Most suitable
Suitable

HAND
TAPS
ISO 513 MS Material specifi c

Vc (m/min) 5 10
EG (STI)
High Titanium base
alloy (medium
S5 machinability) ZET-P (p. 204 )
SPECIAL 3.7164 - TiAl6V4
THREADS, Grade 5
GAUGES

Heat resistant super
THREAD alloy (HRSA) Ni base
(low machinability)
MILLS S3 2.4668 - NiCr19Fe19NbMo ZET-P (p. 204 )
Inconel 718 (forged)
35 ÷ 45 HRC

DIES Heat resistant super
alloy (HRSA) Ni base
(good and medium
S2 machinability)
S1 2.4856 - NiCr22Mo9Nb ZEN-P (p. 236 )
CENTER Inconel 625
<35 HRC
DRILLS
Vc (m/min) 5 10
Most suitable
Technical Suitable
info
