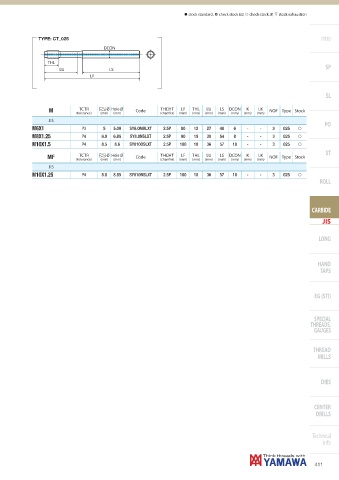

Page 413 - Yamawa_European_Catalogue_YEU23

h stock standard, ) check stock EU, f check stock JP, m stock exhaustion

TYPE: CT_025 Intro
DCON

THL
LU LS SP
LF

SL

TCTR Ø Hole Ø THCHT LF THL LU LS DCON K LK
(tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
M Code NOF Type Stock
JIS
PO
P3 5 5.09 SY6.0MRLXT 2.5P 80 12 27 48 6 - - 3 025 f
M6X1
P4 6.8 6.85 SY8.0NSLXT 2.5P 90 15 30 54 8 - - 3 025 f
M8X1.25
P4 8.5 8.6 SY010OSLXT 2.5P 100 18 36 57 10 - - 3 025 f
M10X1.5
ST
TCTR Ø Hole Ø Code THCHT LF THL LU LS DCON K LK NOF Type Stock
MF (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
JIS
P4 8.8 8.85 SY010NSLXT 2.5P 100 18 36 57 10 - - 3 025 f
M10X1.25
