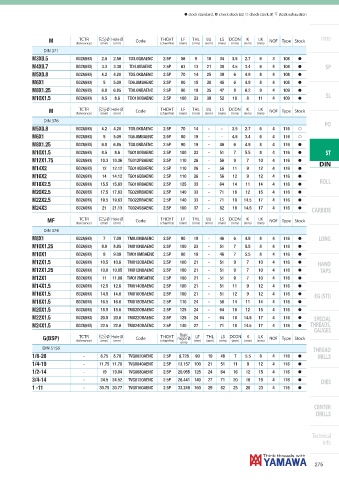

Page 277 - Yamawa_European_Catalogue_YEU23

h stock standard, ) check stock EU, f check stock JP, m stock exhaustion

TCTR Ø Hole Ø Code THCHT LF THL LU LS DCON K LK NOF Type Stock Intro
M (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 371
ISO2X(6HX) 2.5 2.56 TD3.0GBAENC 2.5P 56 9 18 34 3.5 2.7 6 3 108 h
M3X0.5
ISO2X(6HX) 3.3 3.38 TD4.0IBAENC 2.5P 63 13 21 38 4.5 3.4 6 4 108 h SP
M4X0.7
ISO2X(6HX) 4.2 4.28 TD5.0KBAENC 2.5P 70 14 25 39 6 4.9 8 4 108 h
M5X0.8
ISO2X(6HX) 5 5.09 TD6.0MBAENC 2.5P 80 15 30 45 6 4.9 8 4 108 h
M6X1
ISO2X(6HX) 6.8 6.85 TD8.0NBAENC 2.5P 90 19 35 47 8 6.2 9 4 109 h
M8X1.25
SL
ISO2X(6HX) 8.5 8.6 TD010OBAENC 2.5P 100 23 39 52 10 8 11 4 109 h
M10X1.5
TCTR Ø Hole Ø Code THCHT LF THL LU LS DCON K LK NOF Type Stock
M (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
DIN 376
PO
ISO2X(6HX) 4.2 4.28 TG5.0KBAENC 2.5P 70 14 - - 3.5 2.7 6 4 116 f
M5X0.8
ISO2X(6HX) 5 5.09 TG6.0MBAENC 2.5P 80 15 - - 4.5 3.4 6 4 116 f
M6X1
ISO2X(6HX) 6.8 6.85 TG8.0NBAENC 2.5P 90 19 - 46 6 4.9 8 4 116 h
M8X1.25
ISO2X(6HX) 8.5 8.6 TG010OBAENC 2.5P 100 23 - 51 7 5.5 8 4 116 h ST
M10X1.5
ISO2X(6HX) 10.3 10.36 TG012PBAENC 2.5P 110 26 - 56 9 7 10 4 116 h
DIN
M12X1.75
ISO2X(6HX) 12 12.12 TG014QBAENC 2.5P 110 26 - 56 11 9 12 4 116 h
M14X2
ISO2X(6HX) 14 14.12 TG016QBAENC 2.5P 110 26 - 56 12 9 12 4 116 h
M16X2
ROLL
ISO2X(6HX) 15.5 15.63 TG018RBAENC 2.5P 125 33 - 64 14 11 14 4 116 h
M18X2.5
ISO2X(6HX) 17.5 17.63 TG020RBAENC 2.5P 140 33 - 71 16 12 15 4 116 h
M20X2.5
ISO2X(6HX) 19.5 19.63 TG022RBAENC 2.5P 140 33 - 71 18 14.5 17 4 116 h
M22X2.5
ISO2X(6HX) 21 21.13 TG024SBAENC 2.5P 160 37 - 82 18 14.5 17 4 116 h
M24X3 CARBIDE
TCTR Ø Hole Ø THCHT LF THL LU LS DCON K LK
(tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
MF Code NOF Type Stock
DIN 374
ISO2X(6HX) 7 7.09 TM8.0MBAENC 2.5P 90 19 - 46 6 4.9 8 4 116 h LONG
M8X1
ISO2X(6HX) 8.8 8.85 TM010NBAENC 2.5P 100 23 - 51 7 5.5 8 4 116 h
M10X1.25
ISO2X(6HX) 9 9.09 TM010MBAENC 2.5P 90 19 - 46 7 5.5 8 4 116 h
M10X1
ISO2X(6HX) 10.5 10.6 TM012OBAENC 2.5P 100 21 - 51 9 7 10 4 116 h
M12X1.5 HAND
ISO2X(6HX) 10.8 10.85 TM012NBAENC 2.5P 100 21 - 51 9 7 10 4 116 h TAPS
M12X1.25
ISO2X(6HX) 11 11.09 TM012MBAENC 2.5P 100 21 - 51 9 7 10 4 116 h
M12X1
ISO2X(6HX) 12.5 12.6 TM014OBAENC 2.5P 100 21 - 51 11 9 12 4 116 h
M14X1.5
ISO2X(6HX) 14.5 14.6 TM016OBAENC 2.5P 100 21 - 51 12 9 12 4 116 h
M16X1.5 EG (STI)
ISO2X(6HX) 16.5 16.6 TM018OBAENC 2.5P 110 24 - 56 14 11 14 4 116 h
M18X1.5
ISO2X(6HX) 18.5 18.6 TM020OBAENC 2.5P 125 24 - 64 16 12 15 4 116 h
M20X1.5
ISO2X(6HX) 20.5 20.6 TM022OBAENC 2.5P 125 24 - 64 18 14.5 17 4 116 h
M22X1.5 SPECIAL
ISO2X(6HX) 22.5 22.6 TM024OBAENC 2.5P 140 27 - 71 18 14.5 17 4 116 h THREADS,
M24X1.5
GAUGES
Basic
TCTR Ø Hole Ø Code THCHT major Ø LF THL LS DCON K LK NOF Type Stock
G(BSP) (tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm)
(mm)
DIN 5156 THREAD
- 8.75 8.78 TVG0020AENC 2.5P 9.728 90 19 46 7 5.5 8 4 116 h MILLS
1/8-28
- 11.75 11.78 TVG0040AENC 2.5P 13.157 100 21 51 11 9 12 4 116 h
1/4-19
- 19 19.04 TVG0080AENC 2.5P 20.955 125 24 64 16 12 15 4 116 h
1/2-14
- 24.5 24.52 TVG0120AENC 2.5P 26.441 140 27 71 20 16 19 4 116 h
3/4-14 DIES
- 30.75 30.77 TVG0160AENC 2.5P 33.249 160 29 82 25 20 23 4 116 h
1 -11
CENTER
DRILLS
