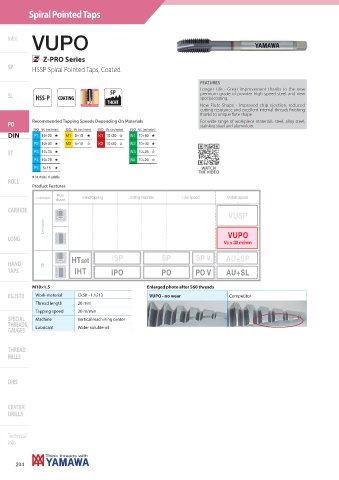

Page 206 - Yamawa_European_Catalogue_YEU23

Spiral Pointed Taps

VUPO
Intro

Z-PRO Series
SP
HSSP Spiral Pointed Taps, Coated

FEATURES
Longer Life - Great improvement thanks to the new
5P premium grade of powder high speed steel and new
SL HSS-P COATING special coating.
THCHT
New Flute Shape - Improved chip ejection, reduced
cutting resistance and excellent internal threads finishing
thanks to unique flute shape.
Recommended Tapping Speeds Depending On Materials For wide range of workpiece materials: steel, alloy steel,
PO stainless steel and aluminium.
ISO Vc (m/min) ISO Vc (m/min) ISO Vc (m/min) ISO Vc (m/min)
DIN P1 10÷30 + M1 5÷15 + K1 10÷20 , N1 10÷40 +
P2 10÷30 + M2 5÷10 , K2 10÷20 , N2 10÷40 +
ST P3 10÷30 + N3 10÷25 ,
P4 10÷25 + N4 10÷20 ,
P7 5÷15 + WATCH
THE VIDEO
+ 1st choice , suitable
ROLL
Product Features
DIN-VUPO
Hole
Lubricant Hand tapping Drilling machine Low speed Middle speed
shape
CARBIDE
VUSP
VUSP
Emulsion

LONG VUPO
Vc ≤ 30 m/min

ISP SP S P V AU+SP
SP
SP V
ISP
AU+SP
+
HAND Oil HTset
TAPS IHT IPO PO PO V AU+SL
M10×1.5 Enlarged photo after 560 threads
EG (STI) Work-material Ck50 - 1.1213 VUPO - no wear Competitor
Thread length 20 mm
Tapping speed 20 m/min
SPECIAL Machine Vertical machining center
THREADS, Lubricant Water soluble oil
