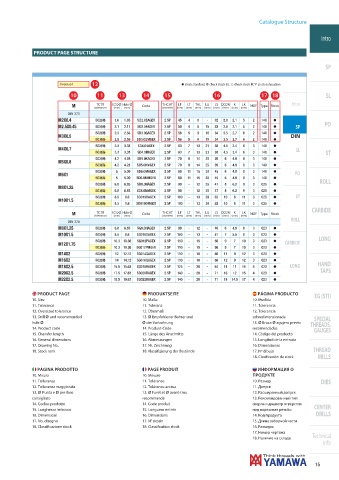

Page 17 - Yamawa_European_Catalogue_YEU23
P. 17
Catalogue Structure
Intro
PRODUCT PAGE STRUCTURE
SP
Oversized 12 h stock standard, ) check stock EU, f check stock JP, m stock exhaustion
10 11 13 14 15 16 17 18 SL
TCTR Ø Hole Ø Code THCHT LF LT THL LU LS DCON K LK NOF Type Stock Intro
(tolerance) (mm) (mm) (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
M
DIN 371
ISO2(6H) 1.6 1.65 SD2.0EAGEX 2.5P 45 4 8 - 32 2.8 2.1 5 2 140 h
PO
M2X0.4
ISO2(6H) 2.1 2.11 SD2.5FAGEX 2.5P 50 4 8 15 33 2.8 2.1 5 2 140 h SP
M2.5X0.45
ISO2(6H) 2.5 2.56 SD3.0GAGEX 2.5P 56 5 9 18 34 3.5 2.7 6 2 140 h
DIN
M3X0.5
ISO3(6G) 2.5 2.56 SD3.0GMGEX 2.5P 56 5 9 18 34 3.5 2.7 6 2 140 h
ISO2(6H) 3.3 3.38 SD4.0IAGEX 2.5P 63 7 13 21 38 4.5 3.4 6 3 140 h
SL
ISO3(6G) 3.3 3.38 SD4.0IMGEX 2.5P 63 7 13 21 38 4.5 3.4 6 3 140 h ST
M4X0.7
ISO2(6H) 4.2 4.28 SD5.0KAGEX 2.5P 70 9 14 25 39 6 4.9 8 3 140 h
M5X0.8
ISO3(6G) 4.2 4.28 SD5.0KMGEX 2.5P 70 9 14 25 39 6 4.9 8 3 140 h
ISO2(6H) 5 5.09 SD6.0MAGEX 2.5P 80 11 15 30 45 6 4.9 8 3 140 h
PO
ISO3(6G) 5 5.09 SD6.0MMGEX 2.5P 80 11 15 30 45 6 4.9 8 3 140 h
M6X1
ROLL
ISO2(6H) 6.8 6.85 SD8.0NAGEX 2.5P 90 - 12 35 47 8 6.2 9 3 025 h
M8X1.25
ISO3(6G) 6.8 6.85 SD8.0NMGEX 2.5P 90 - 12 35 47 8 6.2 9 3 025 h
ISO2(6H) 8.5 8.6 SD010OAGEX 2.5P 100 - 13 39 52 10 8 11 3 025 h ST
ISO3(6G) 8.5 8.6 SD010OMGEX 2.5P 100 - 13 39 52 10 8 11 3 025 h
M10X1.5
CARBIDE
TCTR Ø Hole Ø THCHT LF LT THL LU LS DCON K LK
M (tolerance) (mm) (mm) Code (chamfer) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) NOF Type Stock
ROLL
DIN 376
ISO2(6H) 6.8 6.85 SG8.0NAGEX 2.5P 90 - 12 - 46 6 4.9 8 3 023 h
M8X1.25
ISO2(6H) 8.5 8.6 SG010OAGEX 2.5P 100 - 13 - 51 7 5.5 8 3 023 h
M10X1.5
LONG
ISO2(6H) 10.3 10.36 SG012PAGEX 2.5P 110 - 15 - 56 9 7 10 3 023 h
CARBIDE
M12X1.75
ISO3(6G) 10.3 10.36 SG012PMGEX 2.5P 110 - 15 - 56 9 7 10 3 023 h
ISO2(6H) 12 12.12 SG014QAGEX 2.5P 110 - 18 - 56 11 9 12 3 023 h
M14X2
ISO2(6H) 14 14.12 SG016QAGEX 2.5P 110 - 18 - 56 12 9 12 3 023 h
M16X2 HAND
ISO2(6H) 15.5 15.63 SG018RAGEX 2.5P 125 - 20 - 64 14 11 14 4 023 h LONG
TAPS
M18X2.5
ISO2(6H) 17.5 17.63 SG020RAGEX 2.5P 140 - 20 - 71 16 12 15 4 023 h
M20X2.5
ISO2(6H) 19.5 19.63 SG022RAGEX 2.5P 140 - 20 - 71 18 14.5 17 4 023 h
M22X2.5
