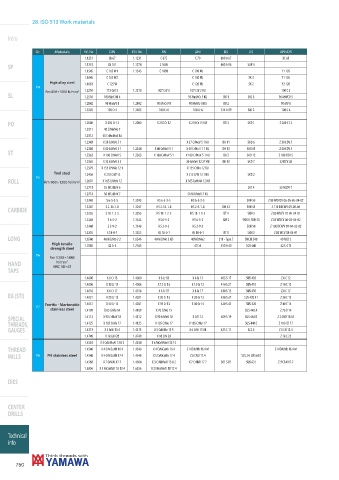

28. ISO 513 Work materials

Intro

Gr. Materials W.-Nr DIN EN-Nr. EN UNI BS JIS AFNOR
1.1231 Ck 67 1.1231 C 67S C 70 060 A 67 XC 68
SP 1.1274 Ck 101 1.1274 C 100S 060 A 96 SUP 4
1.1545 C 105 W1 1.1545 C 105U C 100 KU Y1 105
1.1645 C 105 W2 C 100 KU SK 3 Y1 105
High alloy steel 1.1663 C 125 W C 120 KU SK 2 Y2 120
P4
Rm 800÷1000 N/mm 2 1.2210 115 CrV 3 1.2210 107 CrV 3 107 CrV 3 KU 100 C 3
SL 1.2510 100 MnCrW 4 95 MnWCr 5 KU BO 1 SKS 3 90 MWCV 5
1.2842 90 MnCrV 8 1.2842 90 MnCrV 8 90 MnVCr 8 KU BO 2 90 MV 8
1.3505 100 Cr 6 1.3505 100 Cr 6 100 Cr 6 534 A 99 SUJ 2 100 C 6

PO 1.2080 X 210 Cr 12 1.2080 X 210 Cr 12 X 210 Cr 13 KU BD 3 SKD 1 Z 200 C 12
1.2311 40 CrMnMo 7
1.2312 40 CrMnMoS 86
1.2343 X 38 CrMoV 5 1 X 37 CrMoV 5 1 KU BH 11 SKD 6 Z 38 CDV 5
1.2344 X 40 CrMoV 5 1 1.2344 X 40 CrMoV 5 1 X 40 CrMo 5 1 1 KU BH 13 SKD 61 Z 40 CDV 5
ST 1.2363 X 100 CrMoV 5 1.2363 X 100 CrMoV 5 1 X 100 CrMoV 5 1 KU BA 2 SKD 12 Z 100 CDV 5
1.2365 X 32 CrMoV 3 3 30 CrMoV 12 27 KU BH 10 SKD 7 32 DCV 28
1.2379 X 155 CrVMo 12 1 X 155 CrMo 12 KU
Tool steel 1.2436 X 210 CrW 12 X 215 CrW 12 1 KU SKD 2
P5
ROLL Rm 900÷1200 N/mm 2 1.2601 X 165 CrMoV 12 X 165 CrMoW 12 KU
1.2713 55 NiCrMoV 6 SKT 4 55 NCDV 7
1.2714 56 NiCrMoV 7 56 NiCrMoV 7 KU
1.3243 S 6-5-2-5 1.3243 HS 6-5-2-5 HS 6-5-2-5 SKH 55 Z 85 WDKCV 06-05-05-04-02
1.3247 S 2-10-1-8 1.3247 HS 2-10-1-8 HS 2-9-1-8 BM 42 SKH 51 Z 110 DKCWV 09-08-04
CARBIDE
1.3255 S 18-1-2-5 1.3255 HS 18-1-2-5 HS 18-1-1-5 BT 4 SKH 3 Z 80 WKCV 18-05-04-01
1.3343 S 6-5-2 1.3343 HS 6-5-2 HS 6-5-2 BM 2 SKH 9, SKH 51 Z 85 WDCV 06-05-04-02
1.3348 S 2-9-2 1.3348 HS 2-9-2 HS 2-9-2 SKH 58 Z 100 DCWV 09-04-02-02
1.3355 S 18-0-1 1.3355 HS 18-0-1 HS 18-0-1 BT 1 SKH 2 Z 80 WCV 18-04-01
LONG 1.6546 40 NiCrMo 2 2 1.6546 40 NiCrMo 2 KD 40NiCrMo2 311 - Type 7 SNCM 240 40 NCD 2
High tensile 1.7045 42 Cr 4 1.7045 41Cr4 530 A 40 SCR 440 42 C 4 TS
strength steel
P6
Rm 1200÷1480
2
N/mm
HAND HRC 38÷45
TAPS
1.4000 X 6 Cr 13 1.4000 X 6 Cr 13 X 6 Cr 13 403 S 17 SUS 403 Z 6 C 12
1.4006 X 10 Cr 13 1.4006 X 12 Cr 13 X 12 Cr 13 410 S 21 SUS 410 Z 10 C 13
1.4016 X 6 Cr 17 1.4016 X 6 Cr 17 X 8 Cr 17 430 S 15 SUS 430 Z 8 C 17
EG (STI) 1.4021 X 20 Cr 13 1.4021 X 20 Cr 13 X 20 Cr 13 420 S 37 SUS 420 J 1 Z 20 C 13
Ferritic - Martensitic 1.4031 X 40 Cr 13 1.4031 X 39 Cr 13 X 40 Cr 14 420 S 45 SUS 420 Z 40 C 14
P7
stainless steel 1.4109 X 65 CrMo 14 1.4109 X 70 CrMo 15 SUS 440 A Z 70 D 14
SPECIAL 1.4112 X 90 CrMoV 18 1.4112 X 90 CrMoV 18 X CrTi 12 409 S 19 SUS 440 B Z 2 CND 18 05
THREADS, 1.4125 X 105 CrMo 17 1.4125 X 105 CrMo 17 X 105 CrMo 17 SUS 440 C Z 100 CD 17
GAUGES 1.4313 X 5 CrNi 13 4 1.4313 X 5 CrNiMo 13 3 X 6 CrNi 13 04 425 C 11 SCS 5 Z 5 CN 13.4
1.4749 X 18 CrN 28 1.4749 X 18 CrN 28 Z 18 C 25
1.4534 X 3 CrNiMoAl 13 8 2 1.4534 X 6 NiCrTiMoV 25 15
THREAD 1.4540 X 4 CrNiCuNb 16 4 1.4540 X 4 CrNiCuNb 16 4 Z 4 CNUNb 16.4 M Z 4 CNUNb 16.4 M
MILLS P8 PH stainless steel 1.4548 X 5 CrNiCuNb 17 4 1.4548 X 5 CrNiCuNb 17 4 Z 6 CNU 17.4 SCS 24, SUS 630
1.4568 X 7 CrNiAl 17 7 1.4564 X 3 CrNiMoAl 13 8 2 X 7 CrNiAl 17 7 301 S 81 SUS 631 Z 9 CAN 17.7
1.6356 X 2 NiCoMoTi 18 12 4 1.6356 X 2 NiCoMoTi 18 12 4

DIES

CENTER
DRILLS

Technical
info

750
